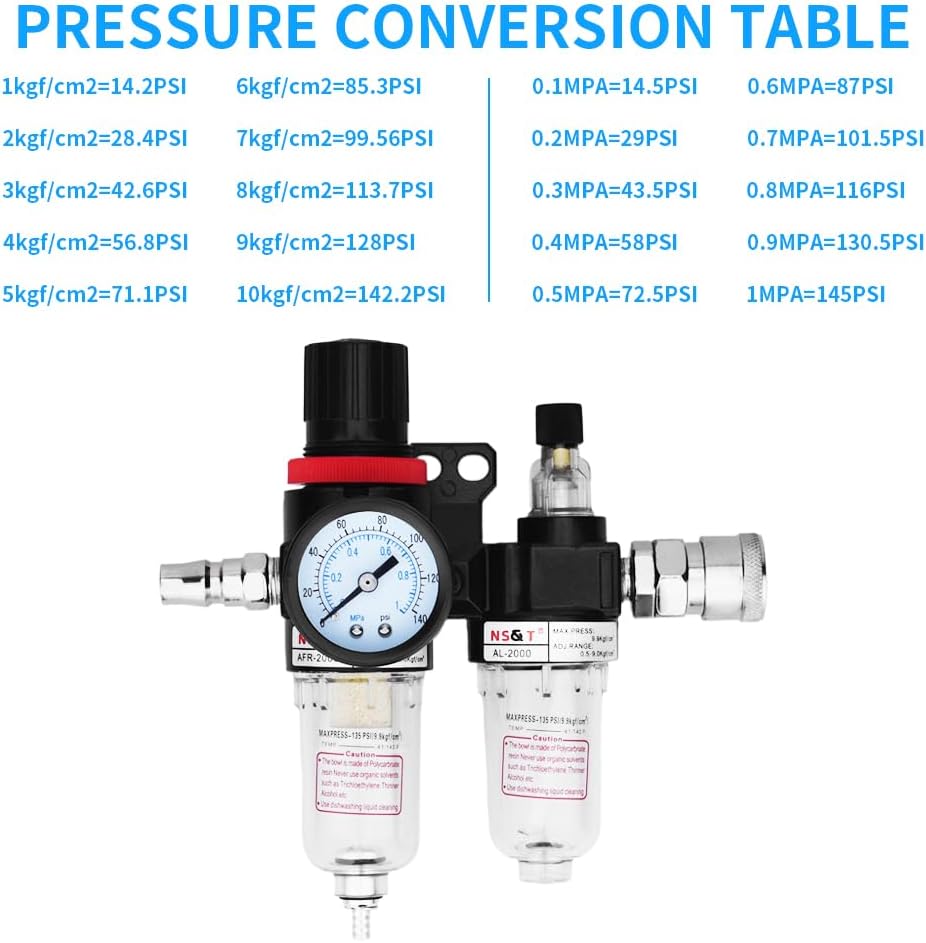

AFC2000 Pneumatic 1/4 G Inch Air Filter Pressure Regulator Kit（0-145 Psi）Air Tool Compressor Filter with Gauge and Lubricator Cup

Install and use 1 Please pay attention to clean the connecting pipes and joints during installation, so as not to bring dirt into the air duct 2 When installing, pay attention to whether the airflow direction is consistent with the direction indicated by the arrow on the fuselage, and pay attention to whether the connection and tooth shape are correct. 3 Pressure adjustment: Pull up the pressure adjustment knob and turn it clockwise to increase the pressure. Rotate counterclockwise, the pressure drops. Adjust to the desired pressure and press the pressure adjustment knob to lock it. 4. Water discharge: when there is no air pressure, water will be discharged automatically. When there is air pressure, push the water column upward to expel the water. After the draining is completed, loosen the draining column, the draining column will automatically pop up, and the draining is complete. When the water level exceeds the upper limit, please drain immediately, otherwise it will cause poor dehumidification. 5 Oil volume adjustment: Turn the needle valve clockwise to reduce the amount of oil dripping, and turn the needle valve counterclockwise to increase the amount of oil dripping. The air volume is large, the oil dripping volume is large; the air volume is small, the oil dripping volume is small. 6 Refueling method: close the air pipeline and refuel, turn the refueling nut counterclockwise, and do not add more than 80 percent of the cup when refueling. After refueling, tighten the refueling nut; do not remove the reservoir cup and refuel directly. Maintain 1 Cleaning/replacement of the filter element: Take out the filter element, blow it from the inside out with air, and then use it again. 2 Transparent PC cup: Remove the PC cup and wipe it with a clean dry cloth. Do not use any chemicals that may damage the PC material.

• Recommend Regulating Pressure Range: 30-120PSI.Max Regulator Pressure: 138PSI
• Regulator Inlet & Outlet Port Size: 1/4" NPT,can filter small particles, keep the air clean
• Small size,light weight, easy installation and maintenance
• If the output pressure is higher than the set pressure, the discharge pressure of the atmosphere to maintain a stable output
• Air filter regulator is that adjust The main channel of air pressure to a pressure value
