WayPonDEV YYT MIPI7LCD 2203 Screen Touchscreen 7 Inch Mini HDMI Monitor LCD Screen 1024x600 Compatible with youyeetoo X1 x86 Single Board Computer/YY3568/Tinker Board 2S/RK3568J/RK3568PC/ITX-3588J
Product details
| Management number | 217009524 | Release Date | 2026/04/19 | List Price | US$10.00 | Model Number | 217009524 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
-Note-1.Please follow our wiki to use 7inches touch screen. Regarding of YY3568 Dev Board/Tinker Board 2S / RK3568J / RK3568PC / ITX-3588J / RK3588s-pc Single Board Computer, you need to flash the specific firmware for display.But for the usage with youyeetoo X1 SBC, you only need to update BIOS, refer to the X1 SBC's wiki part 2.This module supports the 30Pin mipi display interface (DSI) of tinker series and firefly series.Simultaneous use will cause problems such as blurry screen and distortion. severely damaged-Features-Touch scan frequency: 100HzSingle power supply, built-in 1.8V LDOCapacitive screen sensorDetection channel: 26 (drive channel) * 14 (sensing channel)Capacitive screen size range: 7"~8"Cover Lens thickness support: 0.7mm≦glass≦2mm,0.5mm≦acrylic≦1.2mmResponse timeGreen mode: <48msSleep mode: <200msInitialization: <200msSingle power supply: 2.8V~3.3V-Shipping List-7inch LCD Display x 1FPC Cable x 1-Technical Support-Please click "WayPonDEV" and ask a question or wpd#youyeetoo.com (f------>@) skype: monica_9122Please leave the message in our forum by forum.youyeetoo.com/

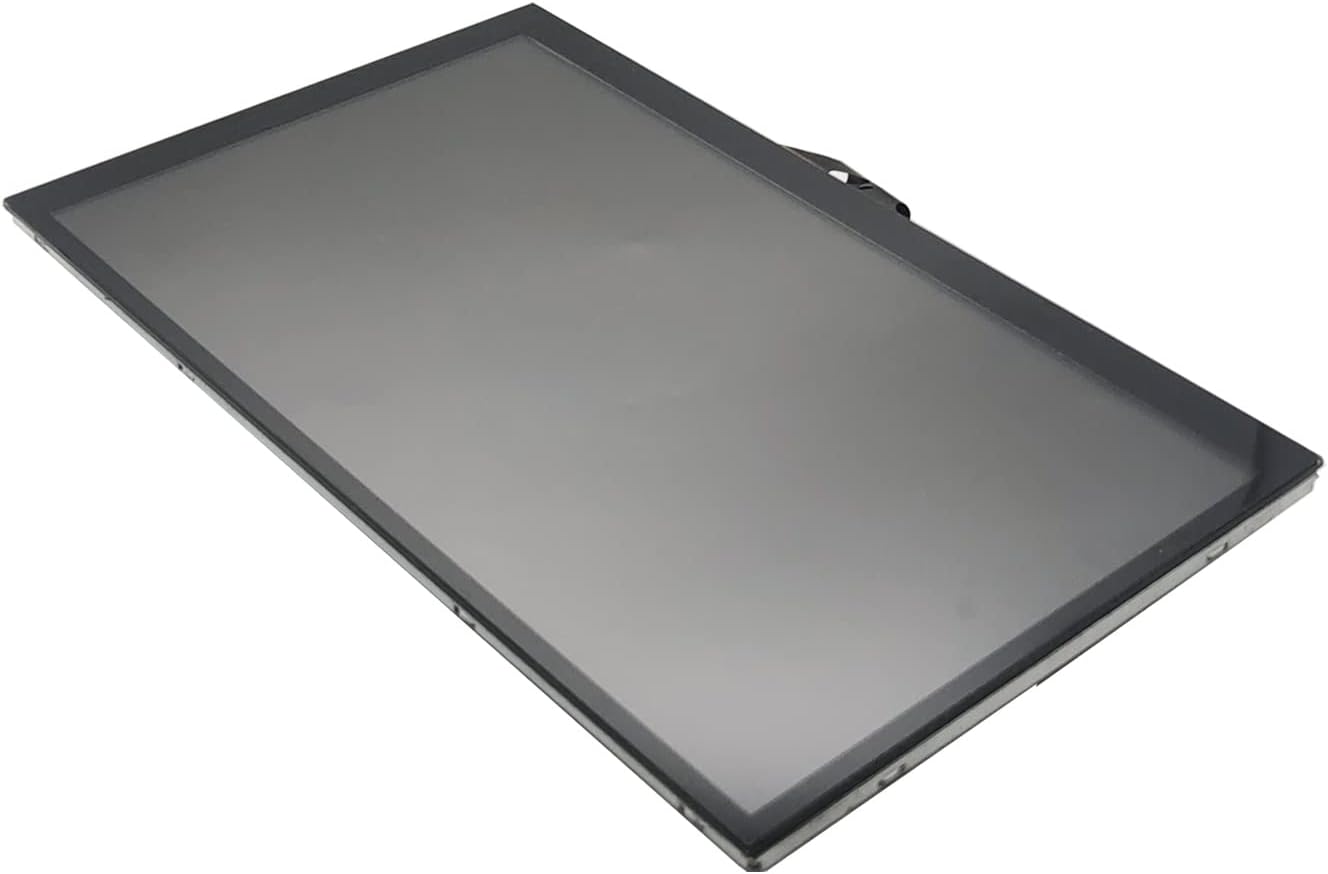

- [High-performance MPU] YYT-MIPI7LCD2203 is a 7-inch color TFT-LCD module with built-in capacitance detection circuit and high-performance MPU; support ITO glass, Flash process; support online programming; physical resolution is 1024x600, refresh rate up to 75Hz

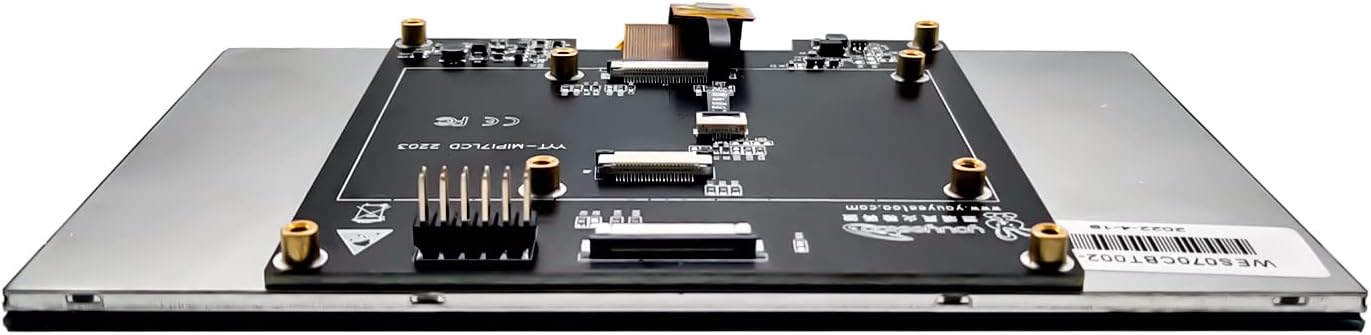

- [High Precision Touch] The module consists of TFT LCD panel, drive circuit, 5-point capacitive touch and backlight. Among them, the 5-point capacitive touch has 26 driving channels and 14 sensing channels, which can meet higher touch accuracy requirements
- [ Multi-point function] It can identify the real-time accurate position, movement trajectory and touch area of 5 touch points; built-in frequency hopping function, and read the touch information of the corresponding points according to the needs of the master control
- [ Multi-board applications] Compatible with - youyeetoo X1 x86 SBC/YY3568 Dev Board/ Tinker Board 2S / RK3568J / RK3568PC / ITX-3588J / RK3588s-pc Single Board and adaptive display on any system with X1 SBC without any specific firmware (BIOS update).
- [System] Support Android / Debian / Ubuntu System
| Brand | WayPonDEV |
|---|---|
| Shape | Rectangular |
| Voltage | 1.8 Volts |
| Model Name | WayPonDEV 7 Inch LCD Screen |
| Resolution | SVGA Wide |
| Is Electric | No |
| Item Weight | 240 Grams |
| Pixel Pitch | 0.29 |
| Screen Size | 7 |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | WayPonDEV |
| Model Number | YYT MIPI7LCD 2203 1024x600 Monitor |
| Refresh Rate | 100 Hz |
| Adaptive Sync | FreeSync |
| BuiltIn Media | FFC Cable, Female to female dupont cable |
| Response Time | 48 Milliseconds |
| Screen Finish | Glossy |
| Viewing Angle | 178 Degrees |
| Contrast Ratio | 2500:1 |
| Item Type Name | 7 Inch Screen |
| Has Color Screen | Yes |
| Native Resolution | 1024x600 |
| Display Technology | LCD |
| Additional Features | Touchscreen |
| Hardware Connectivity | HDMI |
| Connectivity Technology | DisplayPort |
| Item Dimensions D x W x H | 0.39"D x 5.94"W x 3.74"H |
| Display Resolution Maximum | 1024 x 600 Pixels |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 1 |
| Picture Quality Enhancement Technology | freesync |
